Trolmaster Hydro-X CO2 Device Station DSC-1 (*NOTE: This item also known as DSC-2A)



Image for display purposes comes with AUS plug

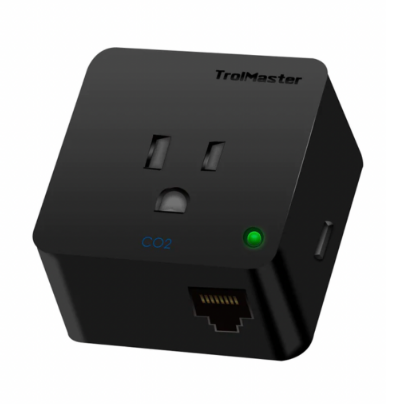

CO2 Device Station DSC-1



The TrolMaster DSC-1 CO2 control / device module allows user the to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-x. Any CO2 device that is 10-amps @ 240 volts or less can be controlled by the DSC-1.



LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.

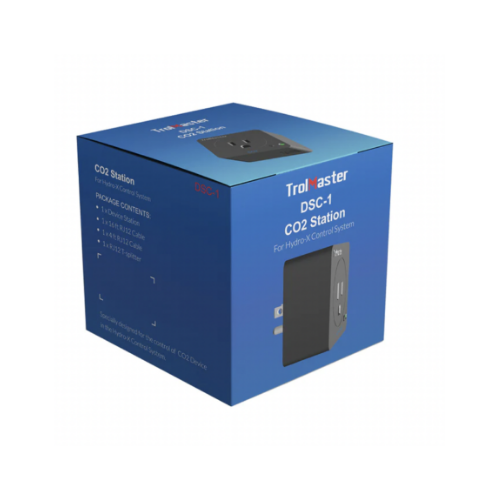

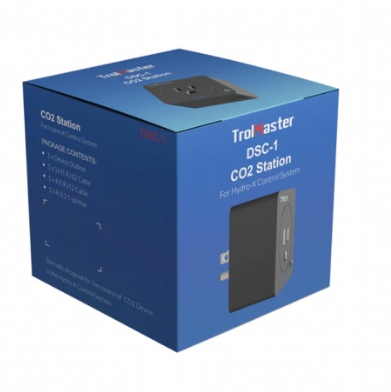

Package Content

1 x Device Station

1 x 16ft RJ12 Cable

1 x 4ft RJ12 Cable

1 x RJ12 T-Splitter



(J4230)

SKU J4230
Brand Hydro-X
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
