Description

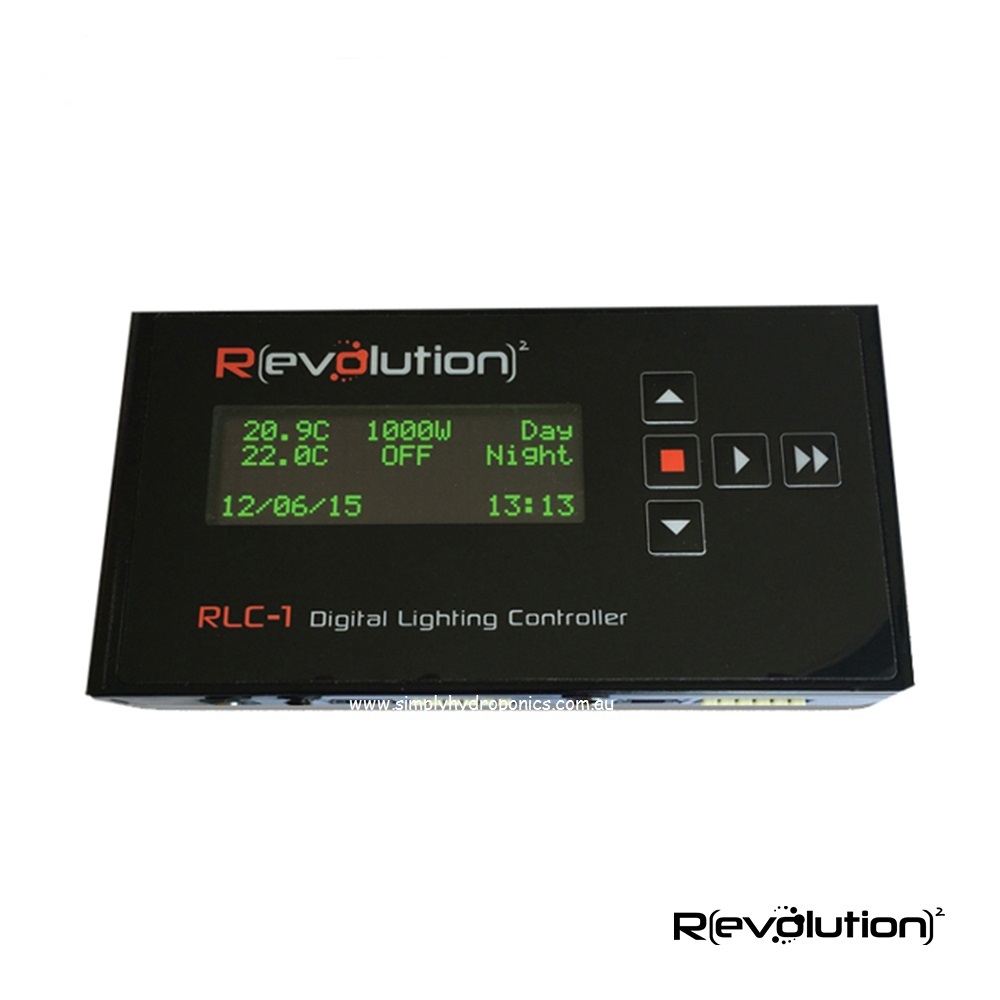

Raw power and lighting intensity is nothing without smart control. That’s why we concurrently developed the world’s smartest grow light controller—the RLC-1. While the DEva can work with your existing lighting controller, the RLC-1 can simulate sunrise and sunset, gradually warming up your plants just as Mother Nature does. It can also capture data on incoming power, lamp life, voltage changes and brown-outs / black-outs thanks to a built-in clock and 30-year rated battery back-up.

Crucially, the RLC-1 can even sense when temperatures in your indoor garden are too high and can automatically respond by dimming your lamps thereby mitigating environmental stress and crop damage. Output power can be fine-tuned from 600W up to 1150W in 1% increments.

The RLC-1 connects with up to 512 DEva 1000W grow lights (spread across two zones) using “buy them anywhere” standard telephone cables.



Features



  • Control up to 512 DEva 1000W lights in two zones
  • No start-up surges
  • Automatic Sunrise/Sunset
  • Automatic dimming with temperature
  • Built-in clock and battery back-up
  • Tracks brownouts, blackouts, lamp hours
  • Use common "buy it anywhere" telephone cables
  • Intelligent re-strike minimizes downtime after blackout





Specifications



Input Voltage 120/240 volts AC, 50/60 Hz
Input Current 4.4A @ 240 volts
System Efficiency 94.7% @ 240 volts
Driver efficiency at full power >98%
Power Factor >99.95%
Light Source 1000w 400V double ended lamp
Luminous Flux >2100uMole/sec
External Dim Revolution or Autopilot controller
External Dim Connector RJ11 (6P4C)
Internal Dim Push-buttom on panel
Output Power 600 - 1150 dimmable in 1% steps
Dimming Push-button or external controller
Certifications CSA, CE, FCC Class B
Dimensions  305MM x 650MM x 135MM



(2315)

SKU 2315
Barcode # 638104018975
Brand Revolution
